Stainless Steel Gray 9023 PVC Cove Base — CoRound® Basic

Is there a gray PVC cove base that goes with stainless steel walls?

The cove base that goes in with the panels. No sealant line required along the wall; pre-formed corners, no silicone-filled field cuts; no resin or cement to cure. CoRound Basic comes as a stainless steel gray PVC cove base, every visible piece in Stainless Steel Gray 9023. The gray is similar to stainless steel and Galvalume®, not an exact match: ask for a free sample to check it against your walls. Against stainless steel panels, CoRound Basic draws a gray line at the floor instead of a white stripe. The visible profiles are rigid PVC with flexible edges, not metal, and the corners, joints and end caps arrive preformed. The long profiles hide their fasteners, and the other pieces press on.

No sealant line required along the wallPre-formed corners, no silicone-filled field cutsNo resin or cement to cureStainless Steel Gray 9023 PVCNo welding on site

Talk to a CoRound Specialist

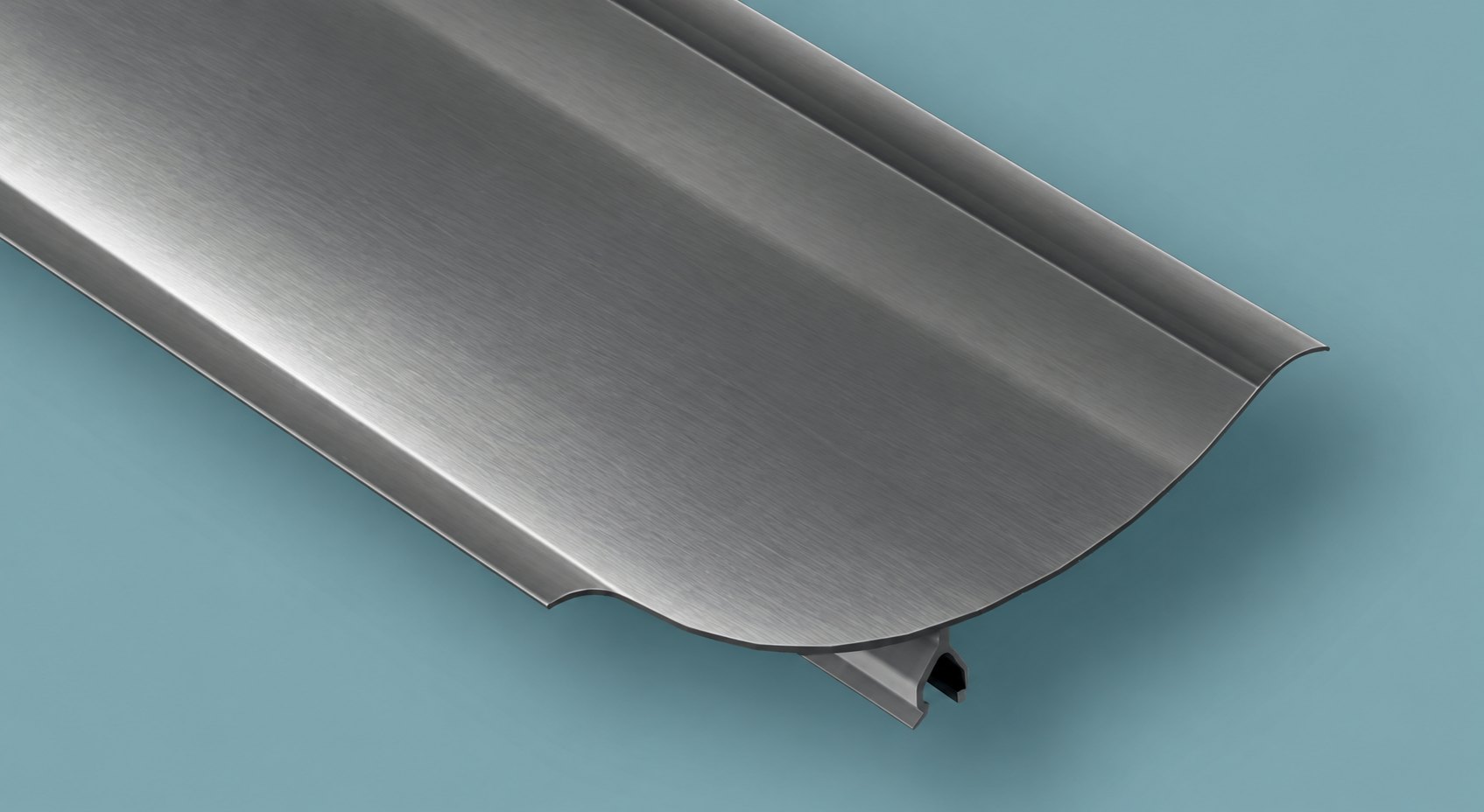

Rendering of a length of the CoRound Basic CoR 4 cove base in Stainless Steel Gray 9023 PVC on a plain background, seen from its cut end
A rendering of the CoRound Basic CoR 4 cove base in Stainless Steel Gray 9023 PVC, as customers receive it.

Why Put a Gray PVC Cove Base Under Stainless Steel Panels?

CoRound Basic in Stainless Steel Gray 9023 is a stainless steel gray PVC cove base for rooms finished in metal. In those rooms, the floor-to-wall juncture is where the look usually breaks. A white sanitary base draws a bright line across the bottom of every wall. Where the panels, the tables and the equipment are all gray metal, that line stands out.

The Stainless Steel Gray 9023 PVC finish exists for that room. It brings a gray similar to stainless steel down to the floor. The juncture then reads less like trim added to the wall. The gray is a color, not a metal: every visible piece is PVC.

What Does It Replace?

It replaces a stainless steel base that has deteriorated. The PVC profiles arrive preformed and install with standard tools: a tape measure, a level, a drill and a cutting tool.

What Is in the System?

Every visible piece of CoRound Basic comes in Stainless Steel Gray 9023 PVC, from the floor to the ceiling:

  • The CoR Skirt B sanitary base. It is screwed or riveted to the wall, or bonded with adhesive: installer’s choice. When the CoR Skirt is screwed or riveted, the fasteners sit behind a snap-on cover strip: no exposed screw heads to collect dirt.
  • The CoR 4 cove base, for wall-to-wall and wall-to-ceiling corners. It snaps onto a hidden support fixed to the wall or ceiling.
  • Corners, end caps and joints. Each profile has its own outside corners and end caps, the sanitary base also has inside corners, and the cove base has its own joints. Two kinds of 3-way corner join the sanitary base to the cove base, and three lengths of cove base to each other.

The CoR 4 Base, the support behind the cove base, does not show once installed.

How Does It Hold Up?

The rounded profile removes the square corner where dirt builds up, and the smooth, non-porous surface is easy to clean. Clean it with non-abrasive detergents; the PVC is resistant to common cleaning chemicals. PVC does not rust. A damaged length can be replaced on its own: the rest of the run stays in place.

Where Does It Belong?

This finish is at home in walk-in coolers and freezers and in warehouses and industrial areas. It also fits the general areas of food processing plants. It belongs wherever the surrounding finish is stainless steel rather than white panel.

PVC or Stainless Steel?

If the decision is still between plastic and metal rather than between colors, weigh rigid PVC against stainless steel first.

Photos

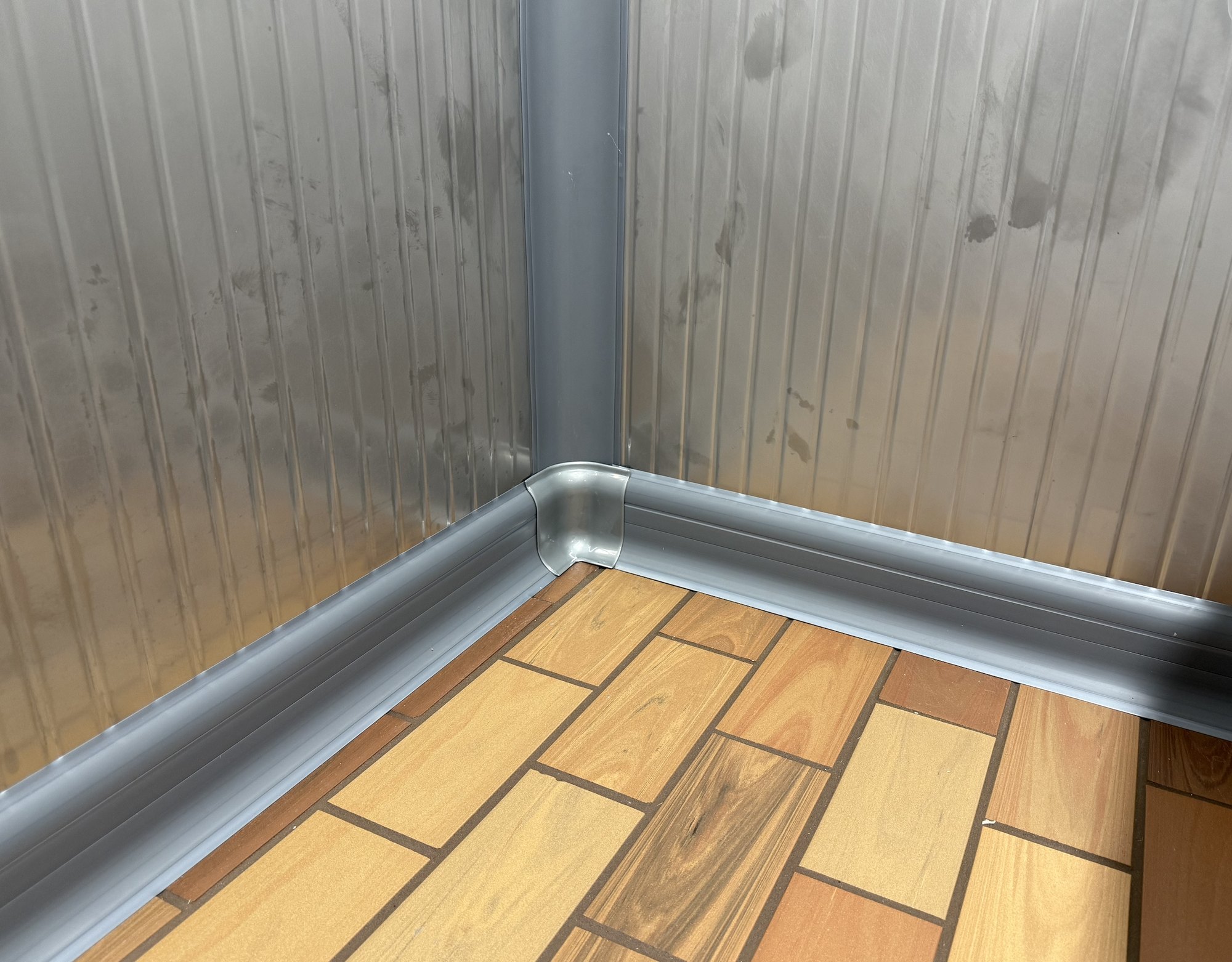

CoRound Basic PVC sanitary base in Stainless Steel Gray 9023 along two walls of stainless steel panels, with an inside corner piece where it meets the cove base in the wall corner
An installed CoRound Basic PVC system, every visible piece in Stainless Steel Gray 9023: the sanitary base and the cove base in the wall corner meet at an inside corner piece, against real stainless steel wall panels.

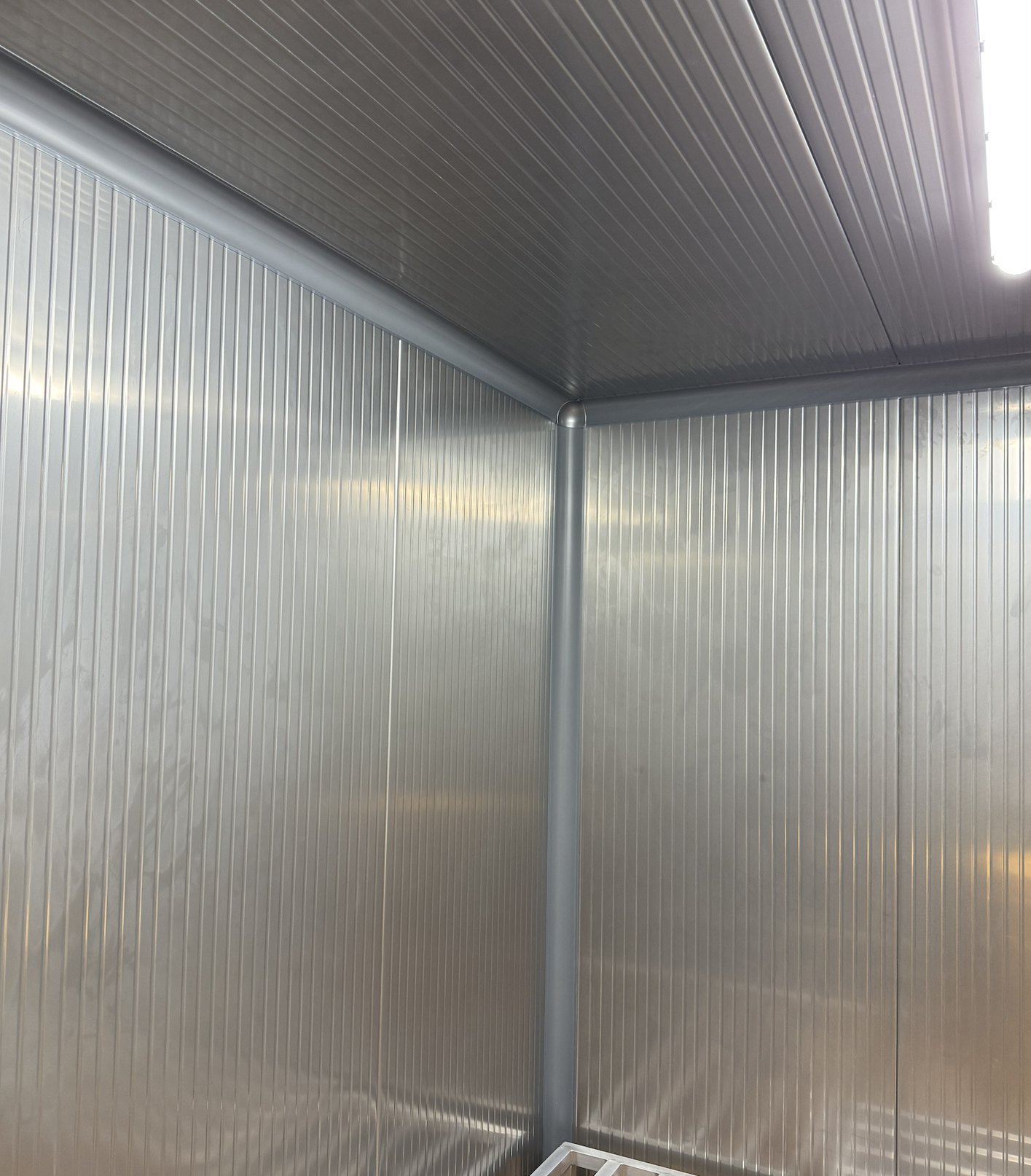

CoRound Basic PVC cove base in Stainless Steel Gray 9023 where two walls of stainless steel panels meet the ceiling and each other
An installation in Texas: the cove base runs along both wall-to-ceiling junctions and down the wall corner. Every visible piece is CoRound Basic PVC in Stainless Steel Gray 9023, on real stainless steel wall panels.

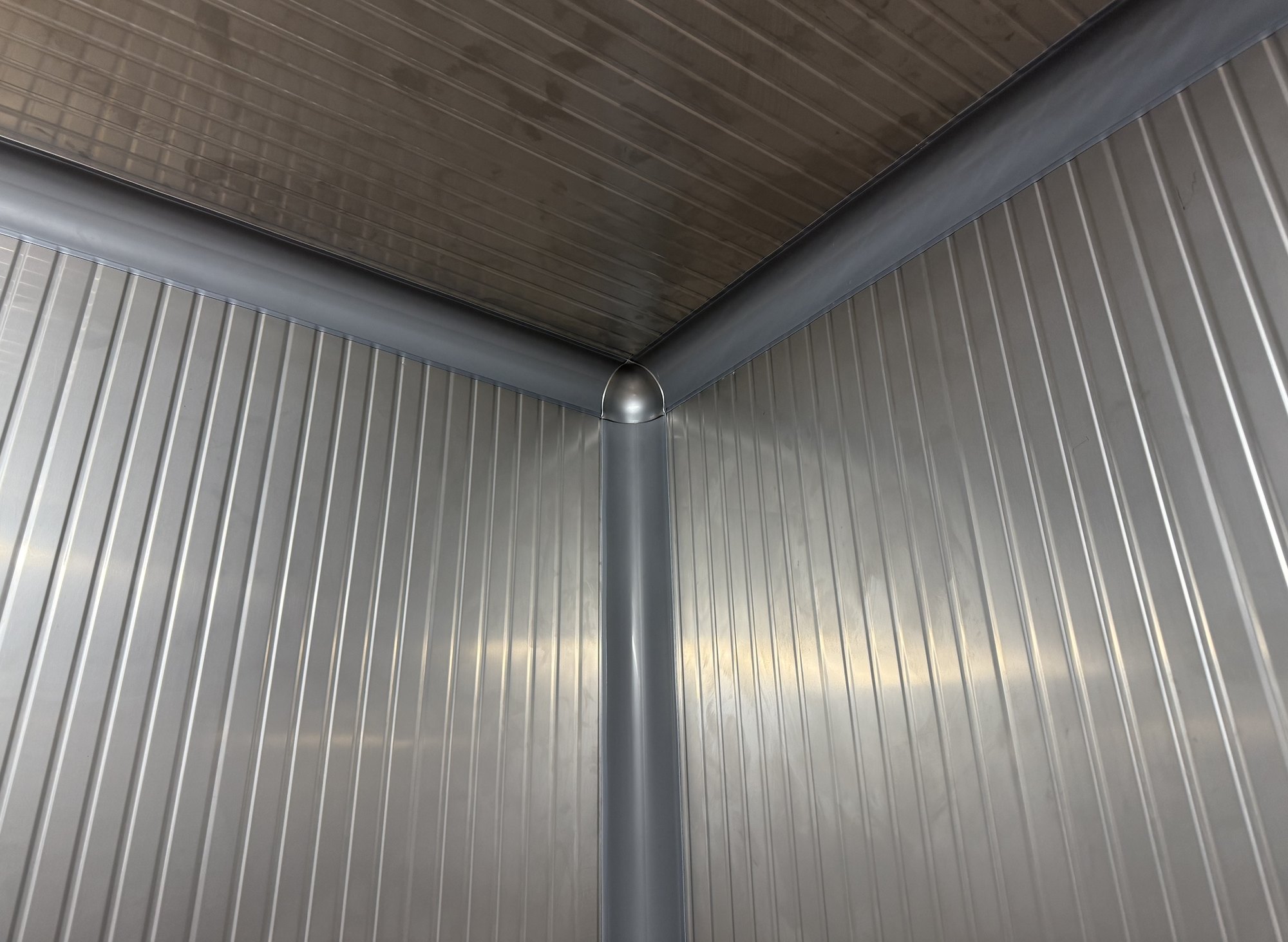

Close-up of a CoRound Basic PVC 3-way corner piece in Stainless Steel Gray 9023 joining three lengths of cove base where two walls of stainless steel panels meet the ceiling
A 3-way corner piece joins three lengths of cove base where two walls meet the ceiling, at an installation in Texas. All three lengths and the corner piece are CoRound Basic PVC in Stainless Steel Gray 9023.
CoRound Basic PVC System Components

Colors (all pieces except CoR 4 Base): Pure White 9010, Sand White 9002, Stainless Steel Gray 9023

CodeSizeLengthColorsPacking
CoR 43.9 in developed width13.1 ftPure White 9010, Sand White 9002, Stainless Steel Gray 902325 pcs/box
CoR 4 Base1.2 in13.1 ft—25 pcs/box
CoR 4 Joint3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
CoR 4 2-Way External Corner3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
CoR 4 B 3-Way Internal Corner3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
CoR 4 End3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
CoR Skirt B3.9 in high13.1 ftPure White 9010, Sand White 9002, Stainless Steel Gray 902310 pcs/box
CoR Skirt B 2-Way Internal Corner3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 902350 pcs/box
CoR Skirt B 2-Way External Corner3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 902350 pcs/box
CoR Skirt B 3-Way Internal Corner3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 902350 pcs/box
CoR Skirt B End Right3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
CoR Skirt B End Left3.9 in—Pure White 9010, Sand White 9002, Stainless Steel Gray 9023100 pcs/box
When Should You Choose CoRound Basic?
  • Choose CoRound Basic in Stainless Steel Gray 9023 PVC when the panels, tables or equipment around it are stainless steel and a white base would break the line.
  • Choose it to replace a deteriorated stainless steel base with preformed PVC profiles that install with standard tools.
  • Choose CoRound Basic in white when the walls are white panel and a gray base would stand out.
  • CoRound Basic for cost-sensitive projects; CoRound Seal adds corner pieces and end caps with flexible lips. The Seal line does not come in Stainless Steel Gray 9023 PVC.
FAQ

Is the gray CoRound Basic profile stainless steel or PVC?
PVC. Every visible piece is PVC in Stainless Steel Gray 9023, a color chosen to sit next to stainless steel panels. The PVC is resistant to common cleaning chemicals.

Will CoRound Basic in Stainless Steel Gray 9023 PVC match our stainless steel panels exactly?
Not exactly. Stainless Steel Gray 9023 PVC looks similar to stainless steel, but it does not copy any particular mill finish. Compare the two side by side in the room before you specify a whole facility. The difference is easier to judge there than on a screen.

Can CoRound Basic replace a damaged stainless steel base?
Yes. Replacing a deteriorated metal base is one of the two reasons buyers choose this finish; the other is going with the stainless steel already in the room. The CoR Skirt B sanitary base is screwed or riveted to the wall, or bonded with adhesive: installer's choice.

How do you install CoRound Basic?
The CoR Skirt B sanitary base is screwed or riveted to the wall, or bonded with adhesive: installer's choice. With screws or rivets, the fasteners go through its openable channel, and the removable cover strip snaps closed over them. Silicone is optional: not required for installation. In wet areas, installers can add a thin bead of neutral silicone to help keep water from getting behind the profile. The CoR 4 cove base snaps onto a hidden support fixed to the wall or ceiling with screws or rivets, and the corners, joints and end caps press on. CoRound Basic for cost-sensitive projects; CoRound Seal adds corner pieces and end caps with flexible lips.

Which CoRound Basic pieces come in Stainless Steel Gray 9023 PVC?
Every visible piece of CoRound Basic. They are the CoR Skirt B sanitary base, the CoR 4 cove base, their corners and end caps, and the cove base joints. The CoR 4 Base, the support behind the cove base, does not show once installed.

Specifying CoRound for a facility? Our technical team usually responds within one business day.

Email info@coroundprofiles.comCall +1 786 917 8106
